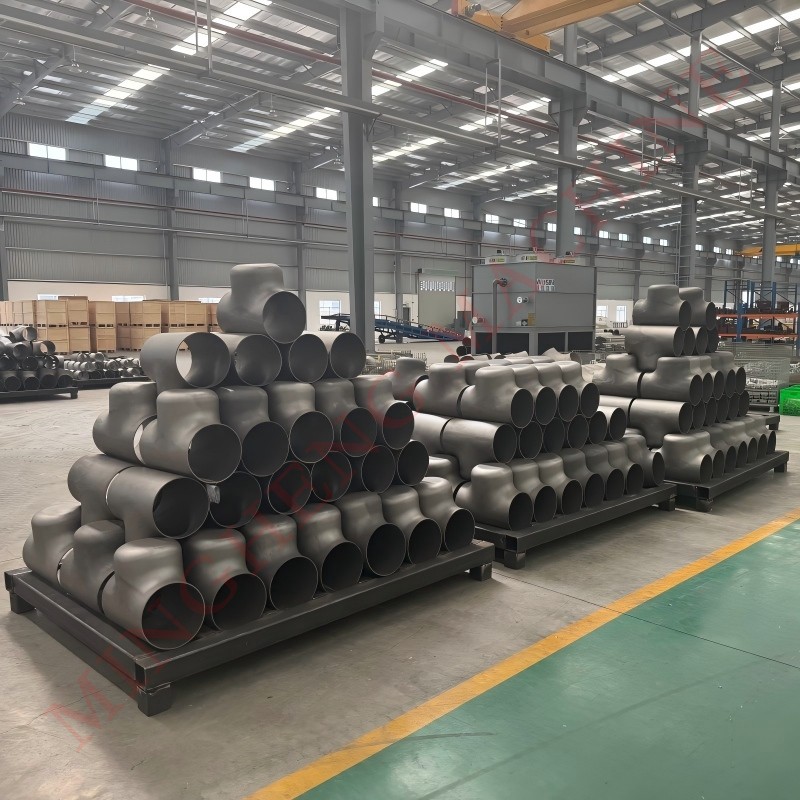

  • YSLT Series Tee Cold Forming Machine is designed for manufacturing both equal and unequal tees with diameter from 1/2" to 28" of stainless steel, carbon steel, alloy steel and some kinds of copper steel. Complying with standards of ASME B16.9, ASME B16.11,GB12459,JIS, DIN and GOST, the products are wildly used in industries of Petrochemical, Oil and Gas pipeline, Electricity and Foods etc.


    Main features are as follows

    1、Integrated welding frame after heat treatment for stress relieving.

    2、The cold forming parameters (forming speed, pressure and cycle time) can be set in the PLC system based on raw pipe size by touch screen.

    3、Advanced logical circuit hydraulic system design with servo motor and proportional valve. It can adjust oil flow and internal fluid forming pressure automatically.

    4、Adopt micro pulse displacement transducer to assure best synchronization precision and minimum tolerance.

    5、Servo motor used for saving electric consumption and achieve lower noisy.

    6、Three kinds of operation mode: manual, semi-automatic and automatic

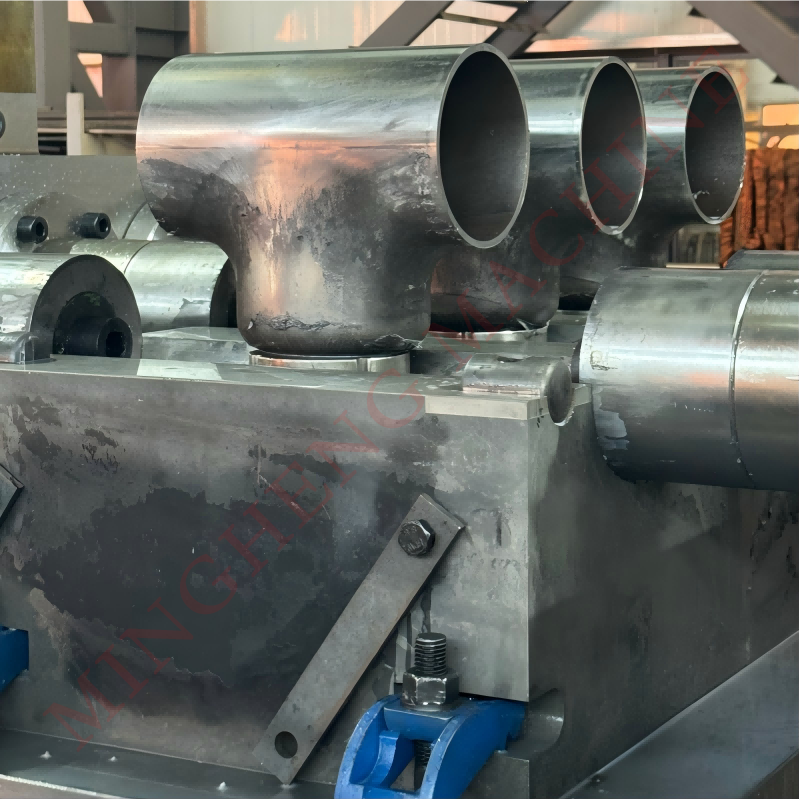

    7、The machine can produce 2 pieces of T fittings in one forming cycle time for small size.

    8、CE Approved and ISO certified

    9、Used in sanitary industry, oil and gas delivery pipeline and nuclear or power plant construction.

    10、The machine capacity (T fittings size, thickness) can be customized as per client special request.
