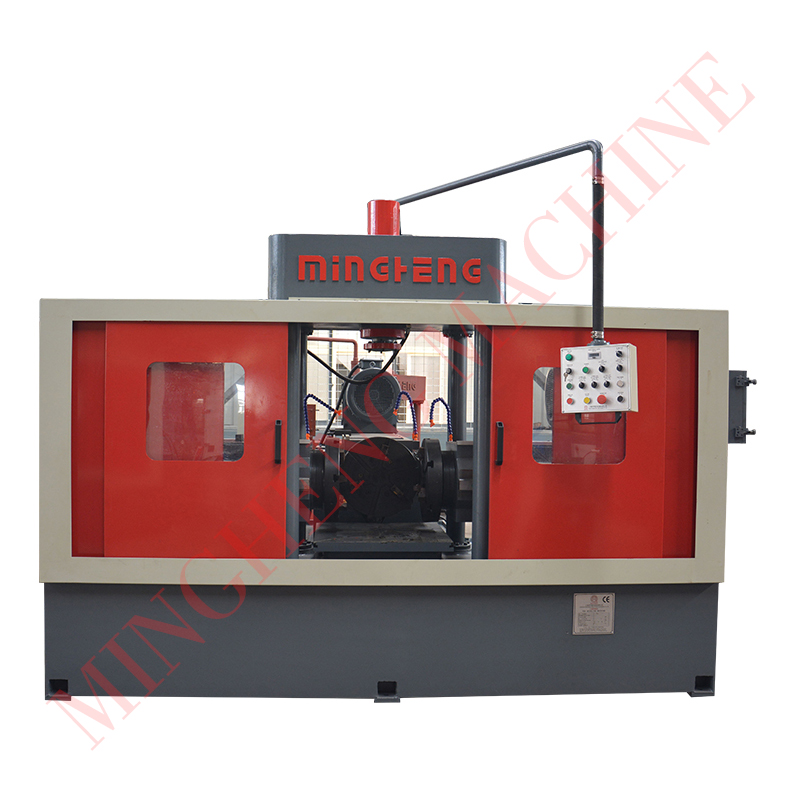

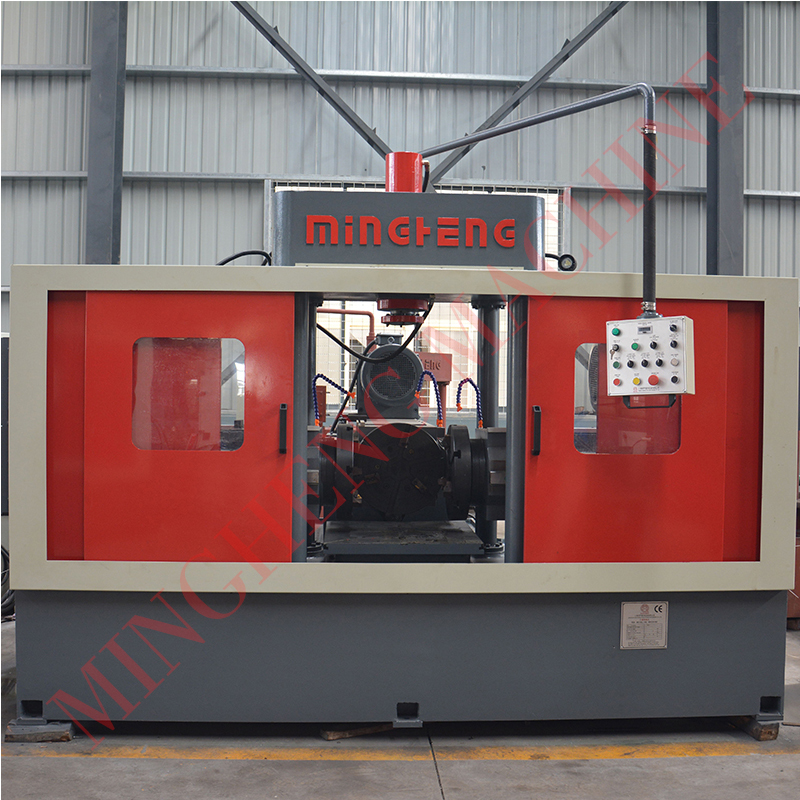

  • YSDJ Series Tee Beveling Machine is the important matching equipments for YSLT Series Tee Cold Forming Machine. This series machines have the advantages of unique design, compact structure, good appearance and convenient operation system.



    Main features are as follows:

    1. It is ideal equipment for beveling both equal and unequal tees of size 1/2" to 48". The tee materials can be carbon steel, stainless steel and alloy steel etc.

    2. There are three tips for each cutter in different angles,these tips serve for different range of work and can work at the same time to ensure the effective cutting,

        fully satisfy the stable requirements of the guide track under the status of strong cutting and save working time and develop production efficiency.

    3. The cutting speed is hydraulic stepless speed control and the processing stroke is also adjustable in according to the size and the thickness of equal or unequal tees,

        and the pipe fittings processed by the machine are strictly complying with relevant tee beveling standard.

    4. The application of floating cutter for large size helps to solve the difficulties of rough roundness of hydro-forming equal and unequal tees,

        which ensures the high beveling precision and qualified ratio.

    5. The machines have high precise-locating device for tee jigs, excellent hydraulic clamping device and individual hydraulic power unit.

        The application of sliding tables with functions of fast feeding, inching and fast retreat enables the safety during working.

    6. There’re three kinds of operation methods: Manual, Semi-auto and Automatic; easy operation system helps to save working time and develop production efficiency.


    TABLE PARAMETER :
