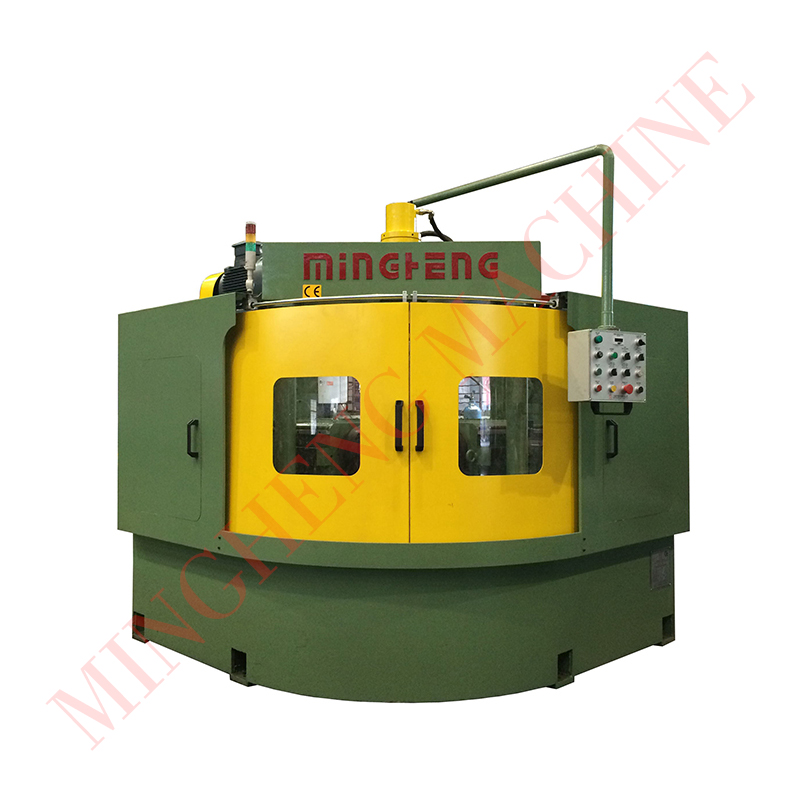

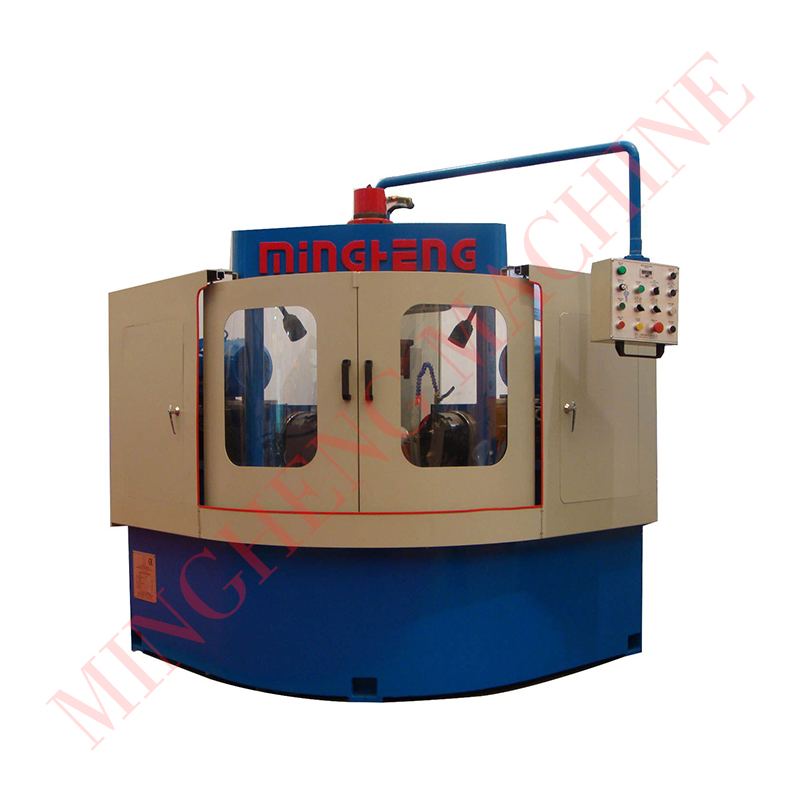

  •  YWDJ Series Elbow Double-End Beveling Machine is the important matching equipments for YLT Series Elbow Cold Forming Machine. This series machines have characteristics of unique design, compact structure, good appearance and easy operation system.



    Main features are as follows:

    1. It is an ideal equipment for beveling or chamfering both LR & SR for 90°elbows of size 1/2" to 48" in various standards.

        The elbow materials can be carbon steel, stainless steel and alloy steel etc.

    2. There are three tips for each cutter in different angles, which can work at the same time to ensure effective cutting and save working

        time and develop production efficiency.

    3. The application of floating cutter for large size helps to solve the difficulties of rough roundness of hydro-forming elbows,

        which ensures the high beveling precision and qualified ratio.

    4. The machines have high precise-locating device for elbow jigs, excellent hydraulic clamping device and individual hydraulic power unit.

        The application of sliding tables with functions of fast feeding,inching and fast retreat enables the safety during working.

    5. There’re three kinds of operation methods: Manual, Semi-auto and Automatic; easy operation system helps to save working time and develop production efficiency.

    6. The cutting speed is hydraulic stepless speed control and the processing stroke is also adjustable in according to the size and the thickness of elbows,

         and the products processed by the machine are strictly complying with relevant elbow beveling standard.

    7. The elbow beveling machine can bevel and chamfering 30°,45°,60°,90° elbows with custom design.
